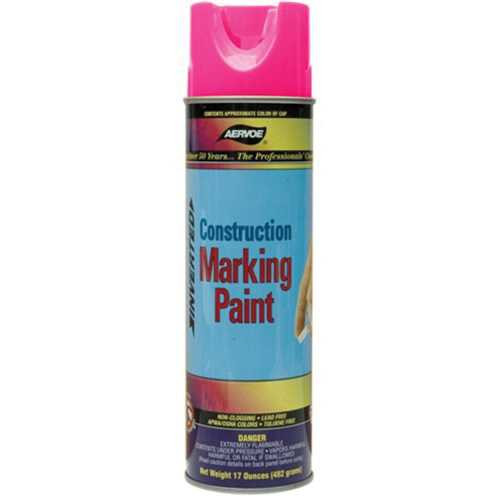

Aervoe Upside Down Paint, 20 oz Aerosol Can

Construction Grade Upside Down Marking Paint

Aervoe Upside Down Marking Paint is a high quality, construction grade, inverted tip (upside-down) marking paint. Commonly used for marking in the construction sites, locator and utility identification and landscaping, Aervoe Upside Down Paint is priced competitively and can also be used for general purpose marking. Construction Grade Upside down Marking Paint will adhere to most surfaces including pavement, gravel and soil.  Paint marks from this construction grade upside down marking paint are bright, durable and will last up to three months. Other colors are available in case quantity purchases. (12 cans per case). Note: Aervoe Construction paint is commonly used by surveyors as an inexpensive upside-down survey paint.

Aervoe Upside Down Paint - 20 oz Aerosol Can Colors and Part Numbers:

• Aervoe Part # 249: Fluorescent Pink
• Aervoe Part #247: Fluorescent Orange

Aervoe Construction Grade Upside Down Paint - Product Data

II. CHARACTERISTICS AND PROPERTIES        Average for all colors

Specifications:

Complies with CARB MIR and VOC rules.

Appearance:

Gloss at 60° ..................................................................<5

Class ............................................................................Flat

Coverage:                                                                                    Aerosol

Theoretical–at mil dry ..................................................274 linear ft./can

Practical–at 1/2 mil dry .................................................548 linear ft./can

Drying Schedule: (At 77°F [25°C], 50% Humidity at 1 mil, dry)

To touch ........................................................................30 min. To handle ......................................................................45 min.

Full cure........................................................................8 hrs.

To recoat.......................................................................Anytime.

Performance and Chemical Properties:

Weight per gallon .........................................................7.22 lbs

Specific gravity .............................................................0.87

Viscosity .......................................................................Not applicable

Flammability: Label marking ........................................Extremely Flammable

Flash point ...........................................< 0°F (-18°C)

Operating temperature range .......................................50° to 100°F (10° to 38°C)

Percent solids by weight...............................................14%

Percent solids by volume .............................................7%

Percent pigment by volume ..........................................4%

Volatile Organic Compound level .................................<66% (Non-Fluorescent - 567 gm/l) (Fluorescent - 540 gm/l)

MIR Limit ......................................................................1.20

Interior durability ...........................................................Very Good

Exterior durability..........................................................Fair

Temperature resistance ................................................Not applicable

Color fastness ..............................................................Good

Adhesion ......................................................................Good

Mineral spirits resistance ..............................................Good

Gasoline resistance ......................................................Poor

Motor oil resistance ......................................................Good

Pencil hardness ............................................................Not applicable

Base Materials

Resin system ................................................................Alkyd

Solvents (top two).........................................................VM&P Naptha, Hexanes

Propellant system .........................................................Hydrocarbon

III. SHIPPING, STORAGE AND HEALTH

IMDG number                                                                           1950

D.O.T. container spec ...............................................................2P

D.O.T. shipping description .......................................................Consumer commodity

Warehouse storage level number .............................................NFPA 30B Level 1

Hazardous class (CFR-49) .......................................................ORM-D

Storage temperature ................................................................40° to 120°F (4° to 49°C)

Shelf life ....................................................................................12 to 24 months

HMIS ratings

Health ................................................................................1

Fire ....................................................................................2

Reactivity ..........................................................................1

IV. MISCELLANEOUS

The APWA/One Call color designation system is used to identify location and direction of underground cables and pipes for above-ground     utility construction. OSHA color assignment is used for physical risk or hazard identification. Contains no Ozone Depleting Substances

(O.D.S.). This product meets MIR and VOC requirements for the State of California.

Color ................APWA/One Call .......................................OSHA

Red ..................Electric ....................................................Danger, stop or location of fire protection equipment

Yellow ...............Gas, Oil ...................................................Caution and physical hazards

Blue ..................Water .......................................................Equipment being repaired. Caution against starting or moving

Green ...............Sewer ......................................................Location of safety equipment other than fire

Orange .............Communication, CATV ............................Dangerous parts of machinery or energized equipment

Purple ...............Reclaimed water .....................................Radiation hazard

Black/White ......White: Proposed excavation ...................Black/White: Traffic and housekeeping

V. WARRANTY

The statements made herein, on labels, product bulletins or by any of our employees or agents concerning this material are given for information only. Any liability whatsoever of Aervoe-Pacific to the user of the product, is limited to replacement of the product or purchase price refunded.

No. 1246 - 2/08
