Haglöf Forester DME 201 Cruiser Complete Unit w/Built-In Prism Factors

Haglof Part Number: 15-100-1001

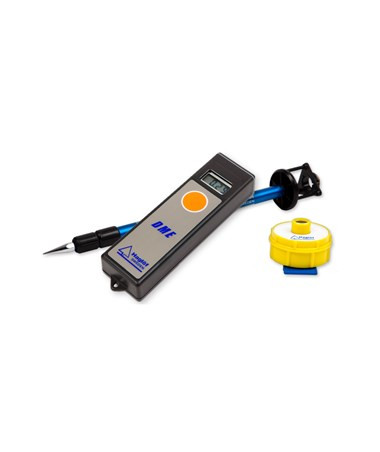

The Haglöf Forester DME 201 Cruiser is pocket-sized, durable, easy to use, and practical for measuring distance in the field. The Haglöf Forester DME 201 Cruiser works great in rugged terrain and when underbrush is present. The Haglöf Forester DME 201 Cruiser can be used for sample plot work, road construction, building dimensions, timber cruising, and stakeout measurements. The Haglöf Forester DME 201 Cruiser has Reverse Prism function that allows it to be used on prism cruises. The Haglöf Forester DME 201 Cruiser comes with the DME unit, 360 Adapter, transponder T3 and monopod staff. Haglöf Forester DME 201 Cruiser has great precision, gives quick and accurate results, and works in all weather conditions.

The DME 201 uses ultrasonic pulses to determine distance, allowing you to walk 360° around the transponder and receive accurate measurements at the push of a button. Ideal for taking plot radius measurements, the DME is accurate even through thick underbrush and won’t miss borderline trees. The DME 201 can measure distance in English or metric units and measures up to 60’/20m in ideal conditions in feet/10ths or m/cm with an accuracy of ±1%. The DME 201 also features a reverse prism function (BAF feature) which has built-in prism factors of 5, 10, 15, 20, 25, 30, 35, 40, 45, and 50 (English) and 0.5, 1.0, 2.0, 3.0, 4.0, 5.0, 6.0, 7.0, 8.0, and 9.0 (Metric). The DME 201 will measure the 52.7’ plot radius for a 1/5 acre plot under normal conditions and can be easily calibrated. The distance measuring instrument uses one 9-volt battery, and the transponder uses one AA cell battery (both included). The DME 201 Complete Unit includes a measuring instrument, transponder, a plot center staff which extends to 54”L and retracts to 25”L, and a threaded adapter for mounting the transponder on the plot center staff or on a standard photographic tripod. When ordering the transponder only, both the Haglof 60 deg transponder only and Haglof 360 degree transponder adapter are required for 360° operation.

 Haglöf Forester DME 201 Cruiser Specifications:

• Size: 30 x 40 x125 mm or 1.2 x 1.6 x 4.9 inches
• Weight: .2 lbs. or 90 g
• Temperature: Min -15 C, Max 45 C or Min 5 F, Max 113 F
• Ultra Sonic Frequency: 25 kHz Distance: 30 m / 98 ft or better (Note: with the 360 degree adapter on the transponder 20 m / 60 ft. or better.)
• Resolution: 0.01 m / .1 ft.
• Accuracy: 1% or better
