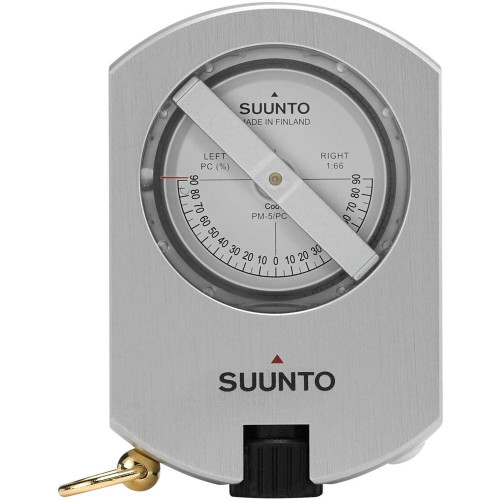

Suunto PM-5/66PC Clinometer

Suunto PM5/66PC Clinometer with Percent and Topo Scales can be used to measure the height of trees, towers, buildings, etc. and to measure slopes for grading or preliminary surveying; as well as measuring vertical angles for cellular and satellite installations and more. The Suunto PM-5/66PC clinometer features a solid aluminum housing with a jeweled bearing assembly. Damped scale for smooth, accurate readings. Parallax-free lens. 1/4˝ x 20 threaded tripod socket. Includes lanyard and black nylon case. ±150%, ±200´ @ 66´ baseline. Suunto PM-5/66PC features Percent/degree conversions on the back.

Dimensions: 2-3/4˝ x 2˝ x 5/8˝. Weight: 4.2 oz. Graduations Percent: 0 to 70% in 1% units, 72 to 150% in 2% units. Topo: 0 to ±200´ with a 66´ baseline. Scale readings can be estimated to 10 minutes or 1/5%, when readings are made around the zero level.
