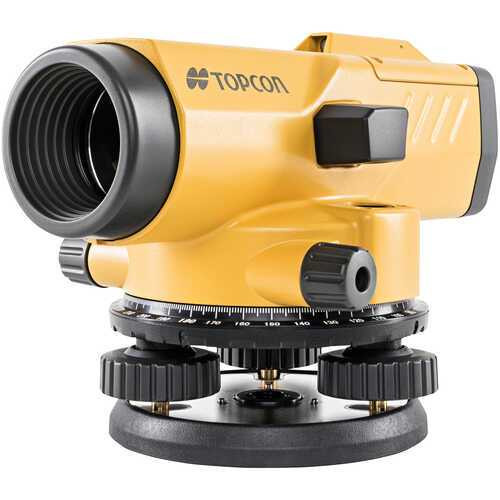

Topcon AT-B4A Automatic Level Automatic Level | 24x Magnification

All Weather - IPX6 Rating

The Topcon AT-B4A/PS offers a rapid, stable and durable compensator providing unmatched accuracy and durability. A finely tuned magnetic damping system quickly levels and stabilizes the line of sight despite the fine vibrations present when working around heavy equipment or busy roads. Horizontal angels can be directly read in 1 degree or 1 gon units. A Free Rotation feature lets you read any angle from zero. The Topcon AT-B4A can focus on objects 20cm in front of the telescope. IPX6 Rated so the Level is protected from heavy rain, The AT-B4A also features an advanced protection design that deters clouding or condensation inside the telescope.

Topcon AT-B4A/PS Specifications:

• Magnification: 24x
• Field of View: 1 degree 25 feet
• Min. Focus from Center of Instrument: 0.3 m
• Image: Erect
• Stadia: Yes (1:100)
• Focusing Knob: 1-speed
• Setting Accuracy: 0.5 in
• Working Range: +/- 15 ft
• Dust/Water Protection: IPX6 (IEC 60529:2001)
• Operating Temperature: -20 degrees Celsius to 50 degrees Celsius
• Size: 122 x 214 x 140 mm
• Weight: 3.30 lbs
