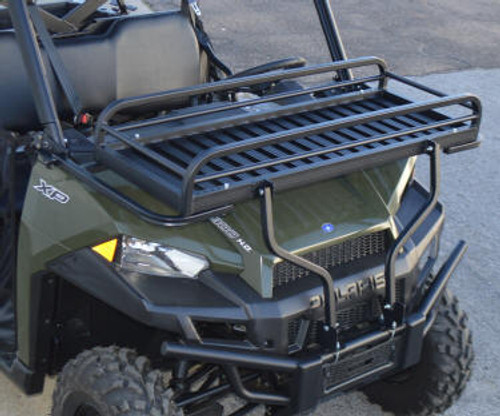

Great Day UTV Front Rack | UVFR751

For a UTV owner, the Great Day UTV Front Rack is the best accessory you can buy for your UTV. You can place, quickly store, and transport gear and tools. Great Day UTV Front Rack is more than a hauling device. The Great Day UTV Front Rack is easy and quick to mount onto most full-sized UTV's and has a pivoting mechanism feature for easy access to the front storage compartment. The Great Day UTV Front Rack is constructed of aircraft aluminum and provides an 18" x 50" x 7" carrying cradle with multiple tie-down points. It is super-tough, sleek, and the powder-coat finish on the Front Rack gives it good looks and insures that it lasts through out the years.

 Great Day UTV Front Rack Specifications:

• Dimensions: 50" x 18" x 7"
• Weight Capacity: 250 lbs

For Installation of the UTV Front Rack on Full Sized UTV’s With a Pro-Fit Roll Cage:  Ranger 900 with Pro-Fit Roll Cage; Ranger 1000 with Pro-Fit Roll Cage:

• INSTALL 1- 5/16” X 1 ¼” BOLT, 2 FLAT WASHERS AND LOCKNUT INTO MIDDLE HOLE OF THE LEFT AND RIGHT ANGLE BRACKETS (BRACKETS WITH THREE HOLES ON ONE SIDE).  TIGHTEN COMPLETELY.  NOTE: THIS BOLT WILL ACT AS A HORIZONTAL REST WHEN INSTALLED.

• REMOVE THE BOTTOM ALLEN BOLT SECURING ROLL BAR SECTIONS ON EACH SIDE OF POLARIS

• INSTALL THE BRACKET TO EACH SIDE OF RANGER USING 1- 5/16” X 3 ½” BOLT AND 12 FLAT WASHERS AND LOCKNUT.

• 10 OF THE FLAT WASHERS ARE TO BE USED BETWEEN ANGLE BRACKET AND ROLL BAR.  THESE WILL FILL THE VOID LEFT BY THE HEAD OF THE REMOVED ALLEN BOLT.

• BOLT WILL PROTRUDE THROUGH INSIDE OF ROLL BAR.  TIGHTEN ALL ASSEMBLIES.  BRACKETS SHOULD SIT HORIZONTAL TO THE GROUND
